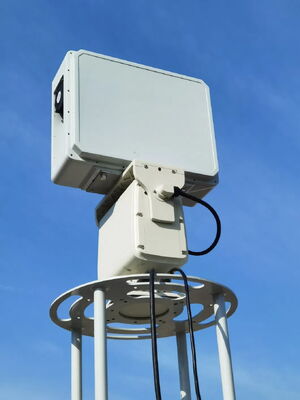

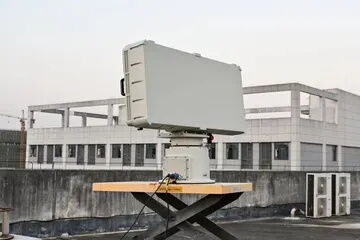

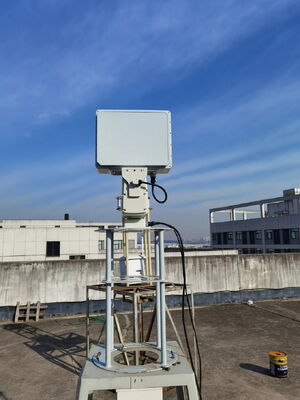

3.5km Detection Range X Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Security Surveillance

1
MOQ
Please consult a sales engineer
Price
3.5km Detection Range X Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Security Surveillance
Features Gallery Product Description Request A Quote
Features
Specifications
Working Frequency: X Band
Detection Range: ≥ 3.5km (DJI Phantom RCS≈0.01m²)
Minimum Detection Range: ≤ 150m
Power Consumption: ≤ 240W
Power Supply: AC220V-AC240V
Net Weight: ≤ 50kg
Highlight:

3.5km Detection Range Air Surveillance Radar

,

X Band Frequency Security Surveillance Radar

,

360° Azimuth Coverage Counter-UAV Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 226X-1X3K-3D
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
Air Surveillance Radar Detector with Super Sensitivity and High Accuracy
U 226X-1X3K-3D / X Band Air Surveillance Radar

The U 226X-1X3K-3D security surveillance radar system consists of radar array and turntable components, designed for detection, warning, and target indication of micro and small civil UAVs in critical areas including prisons, exhibitions, and borderlines.

This advanced system provides precise target tracking information including azimuth, distance, altitude, speed, and other critical parameters.

Key Features
High data rate and high positioning accuracy
Multi-Input Multi-Output (MIMO) system architecture
All-weather operational adaptability
Applications

Security surveillance for airports, border areas, and other critical infrastructure locations requiring comprehensive airspace monitoring.

Technical Specifications
Parameter Specification
Working Mode Phased array + Pulse Doppler
Working System Pulse Doppler
Working Frequency X band
Detection Range ≥ 3.5km (DJI Phantom RCS≈0.01m²)
Minimum Detection Range ≤ 150m
Azimuth Coverage 0°~360°
Elevation Coverage 0°~40°
Distance Accuracy ≤ 10m
Azimuth Accuracy ≤ 1.0°
Elevation Accuracy ≤ 1.0°
Data Rate ≥ 0.25 times/s
Power Consumption ≤ 240W
Power Supply AC220V-AC240V
Net Weight ≤ 50kg
Interface RJ45 / 1 way 100 MB Ethernet (UDP protocol)
Dimensions 500mm * 410mm * 205mm
Working Temperature -40°C ~ +55°C
Storage Temperature -45°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
