Casa /Prodotti/Sistemi anti-drone/High Performance Passive RF Sensor Anti-drone System with 5km Detection Range CRPC Technology and 360° Coverage

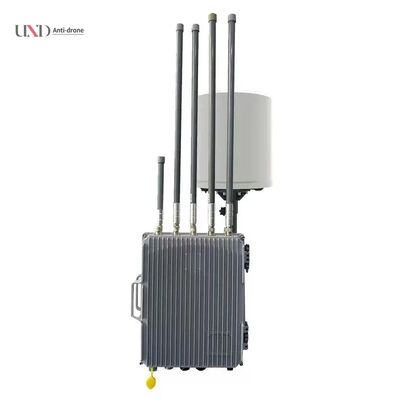

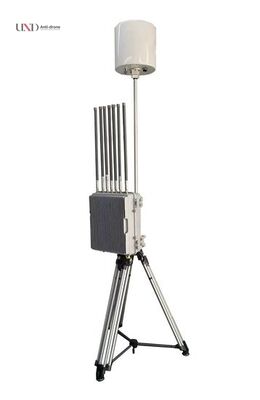

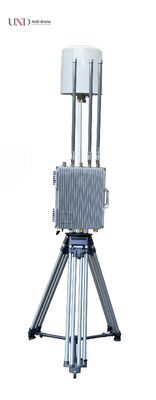

High Performance Passive RF Sensor Anti-drone System with 5km Detection Range CRPC Technology and 360° Coverage

1
MOQ
Please consult a sales engineer
prezzo
High Performance Passive RF Sensor Anti-drone System with 5km Detection Range CRPC Technology and 360° Coverage
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Tensione di alimentazione: AC 100V-240V
Orario di lavoro: Funzionamento continuo 7*24 ore
Velocità dati: 3s-7s
Peso: 14kgs
Dimensioni: L 410 x P 330 x 190 mm
Altezza di rilevamento: 1 km
Evidenziare:

5km Detection Range Passive RF Sensor

,

CRPC Technology Anti-drone System

,

360° Coverage Drone Detector
Informazioni di base
Luogo di origine: Cina
Marca: UND
Numero di modello: U-1410 Pro
Termini di pagamento e spedizione
Tempi di consegna: 5-8 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 100
Descrizione di prodotto
For UAV Detection High Performance Passive RF Sensor Anti-drone Systems
Product Overview
Passive RF Sensor/Detector - WSDF-5000A
The U-DF-5000A Passive RF system utilizes CRPC technology and can be organically integrated with other security systems. Suitable for long-term fixed protection in airports, petrochemical facilities, and large venues. Can also be deployed with vehicles for dynamic support applications including public security law enforcement, special services, and patrol operations.
Key Capabilities
  • 200+ drone library with White & Black list functionality
  • Locate both drones and operators simultaneously
  • Up to 5km radius detection range
  • High accuracy with low false alarm rate
  • Display flight tracking paths on digital maps
  • Display drone's electronic fingerprint identification
System Features
  • Environment Friendly & Safe: Passive detection technology with zero impact and interference on surrounding environment
  • Highly Integrated: All modules integrated into one protective cover, operational immediately upon power connection
  • Networking Positioning: Single station direction measurement with multiple networkable positioning devices
  • Excellent Scalability: Integration capability with radar, optoelectronic, and jamming systems
  • Strong Flexibility: Superior transportation, deployment, and mobility characteristics
Technical Specifications
Custom configurations available upon request.
Model U-5000A
Passive Detection CRPC Technology
Frequency Band Support 30MHz - 6GHz
Key Frequency Bands 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.8GHz (Others optional)
Coverage 360°
Detection Range 5km (radius)
Detection Height 1km
Data Rate 3s-7s
DF Accuracy 10° (following)
≤3° (hovering)
Real-time Detection Capacity ≥ 30 drones
Dimensions L 410 x W 330 x 190mm
Weight 14kgs
Working Time 7*24H continuous operation
Positioning Capabilities Displays working frequency band, brand number, electronic fingerprint ID, bearing, distance, latitude/longitude, flight altitude. Shows identification icons and flight tracks on electronic maps (Optional)
Power Supply 220V AC, compatible with fixed power supply or UPS
Power Voltage AC 100V-240V
Power Consumption 15W
High Performance Passive RF Sensor Anti-drone System with 5km Detection Range CRPC Technology and 360° Coverage 0
