Home /Products/Signal Jammer/45W Output Power Signal Jammer with 22 Antennas for Full Bands Coverage Including GPS L1 L2 L5 and VHF UHF

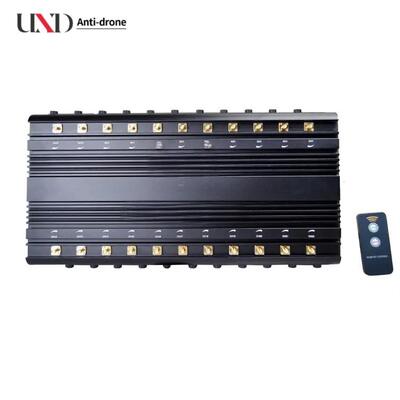

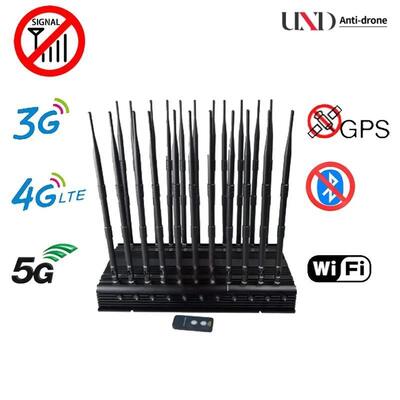

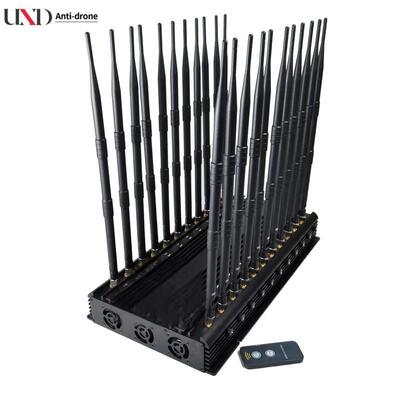

45W Output Power Signal Jammer with 22 Antennas for Full Bands Coverage Including GPS L1 L2 L5 and VHF UHF

1
MOQ
Please consult a sales engineer
Price
45W Output Power Signal Jammer with 22 Antennas for Full Bands Coverage Including GPS L1 L2 L5 and VHF UHF
Features Gallery Product Description Chat Now
Features
Specifications
Output Power: Total 45W, 1-3W Per Band
Jam Radius: 2 To 40 Meters
Power Supply: AC 110V Or 220V To DC 12V
Product Size: 450 × 238 × 60 Mm (excluding Antennas)
Product Weight: 8 Kg
Total Power: 42 Watts
Highlight:

45W Output Power Signal Jammer

,

22 Antennas GPS Jammer

,

Full Bands Coverage RF Jammer
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U-JA22
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
45W GPS L1 L2 L5 2g 3G 22 Antennas VHF UHF Jammer Signal Jammer
Product Overview
  • Jam Signal Type: Full Bands Mobile Phone 5G/LTE/4G/3G/2G + WiFi 2.4G/5.8G + GPS L1-L5 + Walkie-Talkie UHF/VHF + Remote Control 433/315/868
  • Output Power: Total 45W, 1-3W per band
  • Jam Radius: 2 to 40 meters
  • Power Supply: AC 110V or 220V to DC 12V
  • Cooling System: High efficiency aluminum alloy radiator with built-in 5 cooling fans
  • Working Time: Continuous operation
  • Product Size: 450 * 238 * 60 mm (excluding antennas)
  • Product Weight: 8 kg
Technical Specifications
No. Output Port Frequency Average Output Power
1CDMA/RC868850-894 MHz35 dbm / 3W
2GSM925-960 MHz35 dbm / 3W
3DCS1805-1880 MHz33 dbm / 2W
43G2110-2170 MHz33 dbm / 2W
54G800758-821 MHz35 dbm / 3W
64G26002570-2690 MHz30 dbm / 1W
74G25002500-2570 MHz30 dbm / 1W
84G23002300-2400 MHz30 dbm / 1W
95G 15001427-1518 MHz33 dbm / 2W
105G 3.4G3300-3600 MHz30 dbm / 1W
115G 3.8G3600-3900 MHz30 dbm / 1W
125G 4.0G3900-4200 MHz30 dbm / 1W
13WiFi 2.4G 11.b, g2400-2500 MHz30 dbm / 1W
14WiFi 5.2G 11.a4900-5500 MHz30 dbm / 1W
15WiFi 5.8G 11.a5500-5900 MHz30 dbm / 1W
16GPS: L1 + Glonass L11570-1580 MHz33 dbm / 2W
17GPS L2+L5 + Glonass L21170-1280 MHz33 dbm / 2W
18GPS L3+L41370-1390 MHz33 dbm / 2W
19Lojack Car Tracking167-175 MHz35 dbm / 3W
20VHF135-175 MHz35 dbm / 3W
21UHF/RC433400-470 MHz35 dbm / 3W
22RC315315 MHz35 dbm / 3W
Additional Specifications

Power Supply: AC adapter 50 to 60 Hz (110V or 220V AC to 12V DC), Car storage battery charger DC12V

Dimensions: 450 * 238 * 60 mm (excluding signal antennas)

Packing Size: 55 * 44 * 15 cm

Net Weight: 7 kg

Gross Weight: 8.0 kg

Total Power: 42 Watts

Shielding Radius: 2 to 40 meters at -75dBm

Note: Performance depends on signal strength in given area. Shielding radius of VHF/UHF signal is approximately 10 meters.

Warranty: One year from delivery date
