Mini Single Band 20dBm Output Power 900MHz GSM Cell Phone Signal Amplifier with Digital Display Panel

1
MOQ
Please consult a sales engineer
prezzo
Mini Single Band 20dBm Output Power 900MHz GSM Cell Phone Signal Amplifier with Digital Display Panel
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Guadagno: 70dB,65±2dB,60-75dB,UL Gp≥65 DL Gp≥70,65dB
Potenza in uscita: 23dBm,2w/5w/10w/20w/40w/60w,17±2dBm,17dBm;20dBm;23dBm;27dBm,15~25dBm
Colore: blu, nero, bianco, argento/oro, oro
Frequenza: 900/1800/2100 MHz, 2.412-2.484 GHz, 900 MHz / 2100 MHz / 1800 MHz, ripetitore GSM900 MHz, 890-915 MH
Misurare: 150*138*32 mm,130 x 100 x 20 mm,165*115*35.240 x 182 x 22 mm,25*19*2,2 cm
Copertura: 100-700 mq, 100 mq, 3000 mq, 2000 mq
Evidenziare:

20dBm Output Power Signal Booster

,

900MHz Frequency Cell Phone Signal Amplifier

,

Digital Display Panel Mobile Phone Signal Booster
Informazioni di base
Luogo di origine: Cina
Marca: UND
Numero di modello: U-20G-V
Termini di pagamento e spedizione
Tempi di consegna: 5-8 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 100
Descrizione di prodotto
Mini Single Band Cell Phone Signal Amplifier
20dBm Signal Amplifier for 900MHz GSM 800/850 Mobile Phone Signal Boosting
Product Overview
This advanced cell phone signal amplifier provides reliable signal enhancement for multiple frequency bands, featuring digital display controls and intelligent operation modes for optimal performance.

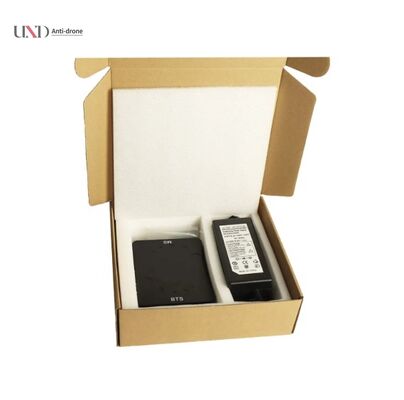

Package Contents
  • AC90-264V, DC9V/5A power supply adapter (1 piece)
  • AC power cord (EU/US/UK/SA/China standard options available)
  • Complete installation kit
  • User manual
Key Features
Digital Display Panel
Intelligent mode settings with LCD digital interface for easy configuration
Smart Function Control
Activate and configure via digital display panel with simplified parameter settings
Easy Configuration
Select gain and working system through LCD panel - simpler than traditional DIP switches

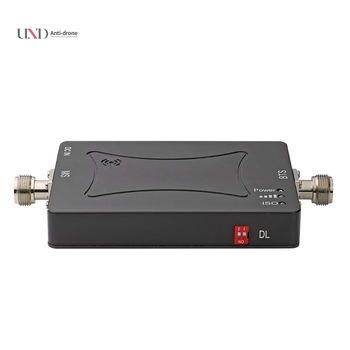

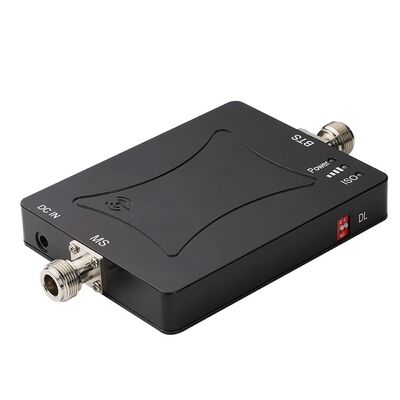

Connection Guide
  • BTS Port: Connect donor antenna cable to Outdoor Port
  • MS Port: Connect service whip antenna to Indoor Port
  • DC IN: Connect to power adapter
Technical Specifications
Frequency Range & Performance
System Uplink Downlink
iDEN 806-824MHz 851-869MHz
CDMA 800/GSM 850 824-849MHz 869-894MHz
GSM 900 890-915MHz 935-960MHz
AWS1700 1710-1755MHz 2110-2155MHz
DCS 1800 1710-1785MHz 1805-1880MHz
PCS 1900 1850-1910MHz 1930-1990MHz
WCDMA/3G 2100 1920-1980MHz 2110-2170MHz
LTE/4G 2600 2500-2570MHz 2620-2690MHz
Performance Parameters
Maximum Gain: 65dB (Uplink) / 70dB (Downlink)
Maximum Output Power: 17dBm / 20dBm
Bandwidth: Wide Band
Manual Gain Control: 31dB / 1dB Step
Automatic Gain Control: >20dB
Ripple in-band: ≤ 6dB
Return loss: ≤ -10dB
Noise Figure: ≤ 6dB
WCDMA Specifications
Spurious Emission: Meets 3GPP TS 25.143 (V 6.2.0)
Modulation Accuracy: ≤ 12.5%
Peak Code Domain Error: ≤ -35dB@Spreading Factor 256
Time Delay: ≤ 1.5 μs
Frequency Stability: ≤ 0.01ppm
General Specifications
MTBF: > 50,000 hours
Power Supply: AC100-240V, DC9V/5A
RF Connector: N-Female
Cooling: Heatsink convection cooling
Impedance: 50 ohm
Humidity: < 90%
Operating Temperature: -10°C to 55°C
Environmental Rating: IP40
Dimensions: 118mm * 91mm * 18mm
Weight: 1Kg
