3.5km Detection Range X Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Perimeter Security

1
MOQ
Please consult a sales engineer
Price
3.5km Detection Range X Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Perimeter Security
Features Gallery Product Description Request A Quote
Features
Specifications
Working System: Pulse Doppler
Working Frequency: X Band
Minimum Detection Range: ≤ 150m
Power Consumption: ≤ 240W
Power Supply: AC220V-AC240V
Dimensions: 500mm × 410mm × 205mm
Highlight:

3.5km Detection Range Air Surveillance Radar

,

X Band Frequency Security Surveillance Radar

,

360° Azimuth Coverage Counter-UAV Radar
Basic Infomation
Place of Origin: China
Brand Name: UND
Model Number: U 226X-1X3K-3D
Payment & Shipping Terms
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 100
Product Description
U 226X-1X3K-3D Air Surveillance Radar for Ground Target Detection
The U 226X-1X3K-3D X-band Air Surveillance Radar is engineered for perimeter security and air surveillance applications, specifically designed for oil refineries and other critical infrastructure protection.

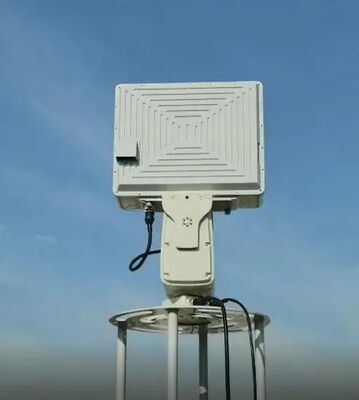

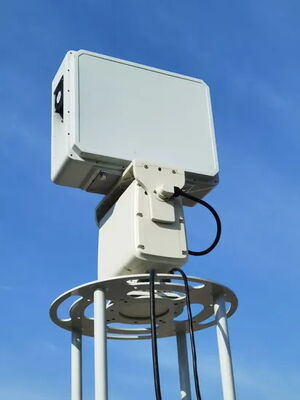

This advanced security surveillance radar system consists of radar array and turntable components, providing comprehensive detection, warning, and target indication capabilities for micro and small civil UAVs in high-security areas including prisons, exhibition centers, and military bases.
The system delivers precise target tracking information including azimuth, distance, altitude, speed, and comprehensive trajectory data.
Key Features
  • High data rate with superior positioning accuracy
  • Advanced Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability and adaptability
Applications
Ideal for security surveillance in airports, military bases, border areas, and other critical infrastructure locations requiring advanced airspace monitoring.
Technical Specifications
Parameter Specification
Working Mode Phased array + Pulse Doppler
Working System Pulse Doppler
Working Frequency X band
Detection Range ≥ 3.5km (DJI Phantom RCS≈0.01m²)
Minimum Detection Range ≤ 150m
Azimuth Coverage 0°~360°
Elevation Coverage 0°~40°
Distance Accuracy ≤ 10m
Azimuth Accuracy ≤ 1.0°
Elevation Accuracy ≤ 1.0°
Data Rate ≥ 0.25 times/s
Power Consumption ≤ 240W
Power Supply AC220V-AC240V
Net Weight ≤ 50kg
Interface RJ45 / 1 way 100 MB Ethernet (UDP protocol)
Dimensions 500mm * 410mm * 205mm
Working Temperature -40°C ~ +55°C
Storage Temperature -45°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
