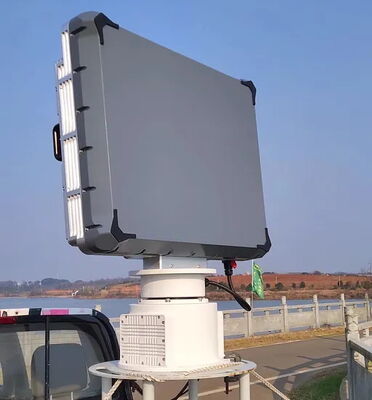

5 km Detection Range S Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Drone Detection

1
MOQ
Please consult a sales engineer
prezzo
5 km Detection Range S Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Drone Detection
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Frequenza di lavoro: Banda S (2,9 GHz; 5 punti di frequenza operativa)
Intervallo di rilevamento: 5 km (DJI Phantom 3/4 RCS≈0,01 m²)
Velocità dati: Ricerca: ≤2s
Consumo energetico: ≤250W
Alimentazione elettrica: AC220V-AC240V
Peso netto: ≤60 kg (con PTZ)
Evidenziare:

5 km detection range Air Surveillance Radar

,

S band frequency Phased Array Radar

,

360° azimuth coverage Drone Detection Radar
Informazioni di base
Luogo di origine: Cina
Marca: UND
Numero di modello: U216R-1S5K-3D
Termini di pagamento e spedizione
Tempi di consegna: 5-8 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 100
Descrizione di prodotto
U 216R-1S5K-3D Civil Commercial Drone Detection Radar
The U 216R-1S5K-3D is an advanced S-band air surveillance radar specifically designed for detecting and tracking civil commercial drones. Utilizing digital active phased array technology with modular, precision engineering, this radar system delivers exceptional performance for primary air surveillance applications.
Advanced Radar Technology
This radar system incorporates cutting-edge technologies including adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration design. The result is stable detection performance, high precision tracking, and cost-effective operation.
The system accurately provides comprehensive target information including azimuth, distance, altitude, speed, and track data for effective drone monitoring and threat assessment.
Key Features
  • High data rate and superior positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational capability
Primary Applications
Ideal for detection, warning, and target indication of micro and small civil UAVs in critical security areas including prisons, exhibition centers, airports, border regions, and other sensitive locations requiring enhanced airspace surveillance.
Technical Specifications
Parameter Specification
Working System/Mode Phased array system (Azimuth phase sweep)
Working Frequency S-band (2.9GHz; 5 operating frequency points)
Detection Range 5 km (DJI Phantom 3/4 RCS≈0.01m²)
Minimum Detection Range ≤100m
Azimuth Coverage 0°~360°
Elevation Coverage 0°~40°
Distance Accuracy ≤10m
Azimuth Accuracy ≤1.0°
Elevation Accuracy ≤1.0°
Data Rate Searching: ≤2s
Power Consumption ≤250W
Power Supply AC220V-AC240V
Net Weight ≤60kg (with PTZ)
Interface RJ45, UDP protocol
Dimensions 782mm * 695mm * 200mm (Antenna)
365mm * 365mm * 312mm (Turntable)
Operating Temperature -40°C to +55°C
Storage Temperature -40°C to +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof

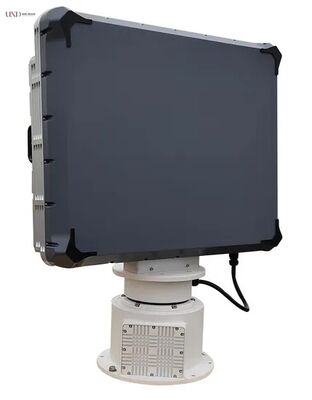

5 km Detection Range S Band Frequency Air Surveillance Radar with 360° Azimuth Coverage for Drone Detection 0
