Advanced S Band Frequency Air Surveillance Radar with 5 km Detection Range and 360° Azimuth Coverage for Drone Detection

1
MOQ
Please consult a sales engineer
prezzo
Advanced S Band Frequency Air Surveillance Radar with 5 km Detection Range and 360° Azimuth Coverage for Drone Detection
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Frequenza di lavoro: Banda S (2,9 GHz; 5 punti di frequenza operativa)
Portata minima di rilevamento: ≤100m
Consumo energetico: ≤250W
Alimentazione elettrica: AC220V-AC240V
Peso netto: ≤60 kg (con PTZ)
Temperatura di lavoro e temperatura di conservazione: 40°C ~ +55°C / -40°C ~ +65°C
Evidenziare:

5 km detection range Air Surveillance Radar

,

S band frequency Phased Array Radar

,

360° azimuth coverage Drone Detection Radar
Informazioni di base
Luogo di origine: Cina
Marca: UND
Numero di modello: U216R-1S5K-3D
Termini di pagamento e spedizione
Tempi di consegna: 5-8 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 100
Descrizione di prodotto
For Monitoring Drone Activity Across Borders and Perimeters Advanced Doppler Air Surveillance Radars

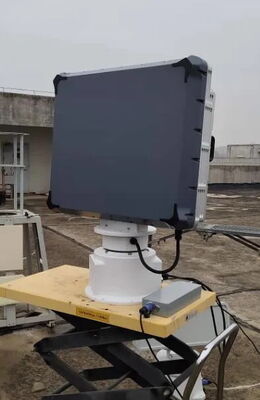

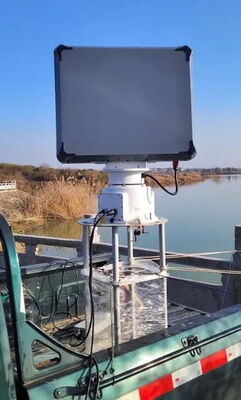

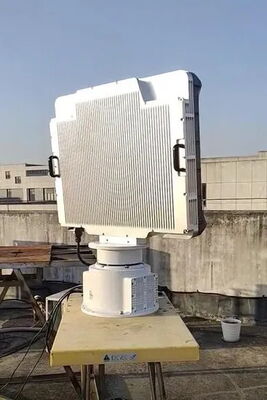

Air Surveillance Radar System
The U 216R-1S5K-3D / S band radar system operates in the S-band and employs advanced digital active phased array technology. Through modular, precision engineering and integrated use of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration design, this system delivers stable detection performance, high precision, and cost-effectiveness as an exceptional ground moving target detection radar.
The system accurately provides comprehensive target tracking information including azimuth, distance, altitude, speed, and other critical parameters for effective airspace monitoring.
Designed for detection, warning, and target indication of micro/small civil UAVs in critical security areas such as prisons, exhibitions, and other sensitive locations.
Key Features
  • High data rate and high positioning accuracy
  • Multi-Input Multi-Output (MIMO) system architecture
  • All-weather operational adaptability
Applications
Airports, border areas, and other critical security surveillance zones requiring comprehensive airspace monitoring and drone detection capabilities.
Technical Specifications
Item Specification
Working system/mode Phased array system (Azimuth phase sweep)
Working frequency S band (2.9GHz; 5 operating frequency points)
Detection range 5 km (DJI Phantom 3/4 RCS≈0.01m²)
Minimum detection range ≤100m
Azimuth coverage 0°~360°
Elevation coverage 0°~40°
Distance accuracy ≤10m
Azimuth accuracy ≤1.0°
Elevation accuracy ≤1.0°
Data rate Searching: ≤2s
Power Consumption ≤250W
Power supply AC220V-AC240V
Net weight ≤60kg (with PTZ)
Interface RJ45, UDP protocol
Dimension 782mm * 695mm * 200mm (Antenna)
365mm * 365mm * 312mm (Turntable)
Working temperature & Storage Temperature -40°C ~ +55°C / -40°C ~ +65°C
Working Environment Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof
