Multi-Functional Surveillance Radar U226-6000XP
The U226-6000XP is a highly versatile multi-purpose radar system designed for detecting and tracking a wide range of targets, including humans, vehicles, vessels, and UAVs. Engineered for deployment in critical areas such as borders, perimeters, airports, coastal regions, and installations, this advanced radar system offers unparalleled performance and adaptability for diverse surveillance applications.
Detection Ranges:
• Pedestrian: 8km
• Vehicle: 10km
• Boats: 15km
• Drones: 5km
Key Features
Multi-Purpose Target Detection
Capable of detecting and tracking humans, vehicles, vessels, and UAVs, making it suitable for a wide range of surveillance and security applications.
High Precision and Real-Time Tracking
Equipped with advanced Digital Beamforming (DBF) and Active Phased Array Technology to provide accurate three-dimensional tracking of multiple targets simultaneously.
All-Weather, All-Terrain Performance
Operates effectively in harsh environmental conditions such as rain, snow, fog, and dusty environments, ensuring reliable performance 24/7.

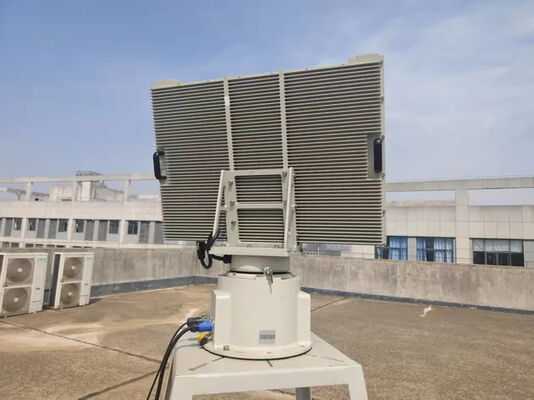

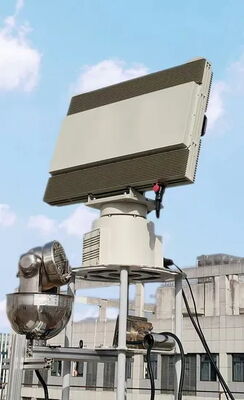

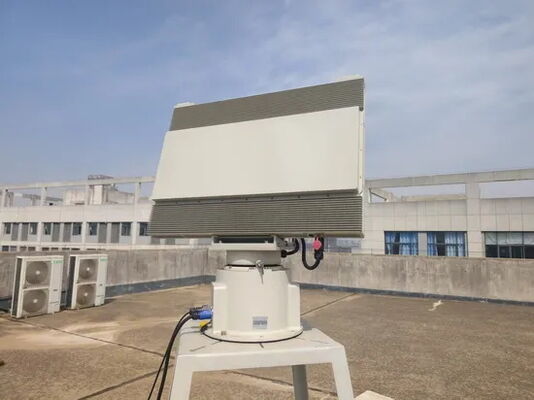

360-Degree Omnidirectional Coverage
Features a motorized rotary table for seamless blind-spot-free monitoring over large areas, enhancing situational awareness.
Strong Resistance to Interference
Built to withstand electromagnetic interference, ensuring stable operation even in complex and high-density environments.
Compact and Modular Design
Easy to deploy, integrate, and maintain. Can be combined with electro-optical cameras, RF detection systems, jammers, and command-and-control platforms for versatile operations.
Cost-Effective Solution
Combines reliability, exceptional performance, and affordability, offering excellent value for diverse security needs.
Technical Specifications
Custom configurations available upon request.
| Model |
U226-6000XP |
| Working System |
30,500 |
| Working Mode |
165 |
| Frequency |
1.2-1.8 GHz |
| Coverage |
Azimuth: 360° / Vertical: 40° |
| Max Detection Range |
Human: 150m ~ 8km
Vehicle: 150m ~ 10km
Vessel: 150m ~ 15km
Drones: 150m ~ 5km
|
| Detection Speed |
1m/s - 75m/s |
| Accuracy |
Speed: ≤ 0.5m/s
Distance: ≤ 10m
Azimuth: ≤ 0.4°
Vertical: ≤ 0.5°
|
| Min Detection Distance |
≤ 150m |
| Data Rate |
≥ 0.5Hz (Antenna Rotation ≥ 30rpm) |
| Max Detection Target Number |
200 |
| Target Trajectory |
Motion Target Trajectory |
| Interface |
RJ45 |
| Rated Power |
400W |
| Power Supply |
AC200-AC240 |
| Dust/Water Proof |
IP66 |
| Working Temperature |
-40℃ to +55℃ |
| Size |
820 x 925 x 360mm |
| Weight |
Radar Panel: 38kg
PTZ: 28kg
Total System: 77kg
|
