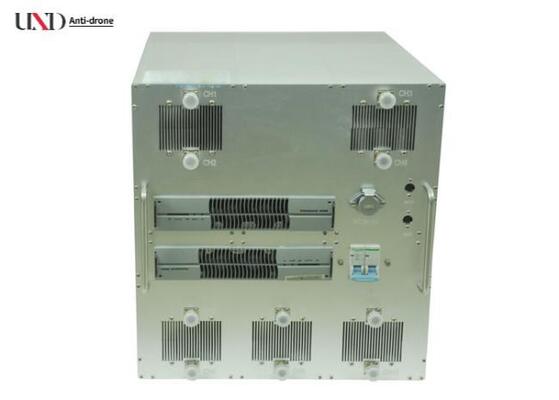

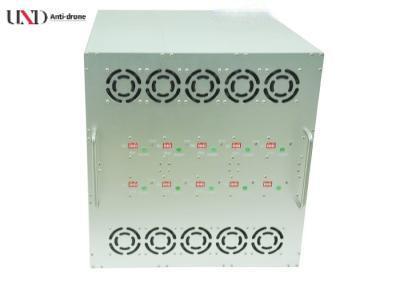

1000 Watt IEDs Convoy Bomb Jammer - 65kg Weight with 800m Long Distance & 11 Channels
Advanced Bomb Jamming Technology
Our defensive bomb jammer technology provides powerful system solutions to counter the growing threat of Remote Controlled Improvised Explosive Devices (RCIED). Engineered with IED Jammer and RF Jammer designs, this system neutralizes and prevents deadly criminal acts including radio-controlled car bombs, roadside bombs, ambush attacks, assassinations, and terrorist events.
Dual-Functionality Applications
Beyond high-power convoy jamming, our systems serve dual purposes at checkpoints and border crossings, defeating ambush attacks while simultaneously blocking unauthorized communications in government installations, diplomatic buildings, prisons, and military bases.
Included Accessories
- Electric Generator
- Backup Battery
- Omni Directional Antennas
- Directional Antennas (Optional)
- Superflexible 1/2 RF Cables - 7 meters for antenna installation
- Wired Remote Control Unit - ON/OFF and operation mode switching
- Connectors for vehicle installation
Technical Specifications
Customizable frequency coverage includes: AM/FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, wireless toys, remote controls (27MHz, 49MHz, 433MHz, 315MHz, 868MHz, 450MHz), iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS, 3G, 4G, LTE bands (700, 800, 2300, 2600), GPS (L1, L2), Galileo, Compass, Glonass, WiFi, Bluetooth, spy cameras, WIMAX, UAV, drones, and 5.8G.
Channel Configuration
| Channel |
Frequency Range |
Application |
Output Power |
| CH1 |
20~108MHz |
Wireless Toys, FM Radio |
50dBm |
| CH2 |
135~174MHz |
Walkie-talkie (VHF) |
50dBm |
| CH3 |
300-400MHz |
Remote Control |
50dBm |
| CH4 |
400~470MHz |
Walkie-talkie (UHF), Car Alarm |
50dBm |
| CH5 |
851~894MHz |
Cellular CDMA |
50dBm |
| CH6 |
902-960MHz |
Cellular GSM, E-GSM, Drone |
50dBm |
| CH7 |
1805~1990MHz |
Cellular DCS, PCS |
50dBm |
| CH8 |
1570-1580MHz |
GPS L1, Drone |
47dBm |
| CH9 |
2110~2170MHz |
Cellular WCDMA |
50dBm |
| CH10 |
2400-2485MHz |
WiFi, Bluetooth, Drone |
50dBm |
| CH11 |
5725-5850MHz |
WiFi, 5.8G, Drone |
41.7dBm |
System Parameters
| Power Supply |
AC110-240V |
| Output Power |
1000W |
| Jamming Radius |
50-800M (environment dependent) |
| Power Consumption |
3000W |
| Weight |
65Kg |
| Antenna Size (L*H*W) |
640*540*550mm |
| Humidity Range |
5%-95% |
| Operating Temperature |
-20°C to +55°C |
RF Characteristics
| Output Power |
1000 Watts |
| Internal Modulation |
FM Hopping Frequency |
| Signal Source |
VCO Synthesized & DDS |
| Power Supply |
AC110-240V, 24V DC |
| Modules Per Unit |
11 |
| Control System |
Wired Remote Control with ON/OFF Switch |
| Monitoring |
Adjusted output power by DIP Switch |
| Antenna Type |
External Omni-directional for 360° coverage |
| Power Amplifier Protection |
Full VSWR protector |
| Operating Hours |
Unlimited |
Primary Applications
Military Convoy Protection, VIP Security, RIOT Control, S.W.A.T Team Operations, EOD (Explosive Ordnance Disposal) Missions, Electronic Countermeasures, and Specialized Security Operations.
