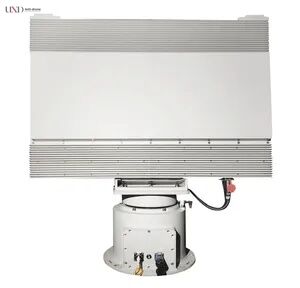

The U226-6000XP is a highly versatile multi-purpose radar system engineered for detecting and tracking diverse targets including humans, vehicles, vessels, and UAVs. Designed for deployment in critical security areas such as borders, perimeters, airports, coastal regions, and installations, this advanced system delivers unparalleled performance and adaptability for comprehensive surveillance applications.
Equipped with a high-precision radar array, motorized rotary table, and robust power adapter, the U226-6000XP leverages Digital Beamforming (DBF) and Active Phased Array Technology to deliver real-time tracking and accurate three-dimensional coordinates of multiple targets. Its all-weather design ensures consistent operation in harsh conditions including rain, snow, fog, and dust, while maintaining strong resistance to interference in high-density electromagnetic environments.
Capable of detecting and tracking humans, vehicles, vessels, and UAVs, making it suitable for a wide range of surveillance and security applications.
Advanced Digital Beamforming (DBF) and Active Phased Array Technology provide accurate three-dimensional tracking of multiple targets simultaneously.
Operates effectively in harsh environmental conditions including rain, snow, fog, and dusty environments, ensuring reliable 24/7 performance.
Custom configurations available upon request.
| Model | U226-6000XP |
|---|---|
| Working System | 30,500 |
| Working Mode | 165 |
| Frequency | 1.2-1.8 GHz |
| Coverage | Azimuth: 360° / Vertical: 40° |
| Maximum Detection Range |
Human: 150m - 8km Vehicle: 150m - 10km Vessel: 150m - 15km Drones: 150m - 5km |
| Detection Speed | 1 m/s - 75 m/s |
| Accuracy |
Speed: ≤ 0.5 m/s Distance: ≤ 10 m Azimuth: ≤ 0.4° Vertical: ≤ 0.5° |
| Minimum Detection Distance | ≤ 150m |
| Data Rate | ≥ 0.5 Hz (Antenna Rotation ≥ 30 rpm) |
| Maximum Detection Target Number | 200 |
| Target Trajectory | Motion Target Trajectory |
| Interface | RJ45 |
| Rated Power | 400W |
| Power Supply | AC 200-240V |
| Dust/Water Proof | IP66 |
| Working Temperature | -40℃ to +55℃ |
| Size | 820 * 925 * 360 mm |
| Weight |
Radar Panel: 38 kg PTZ: 28 kg Total System: 77 kg |
