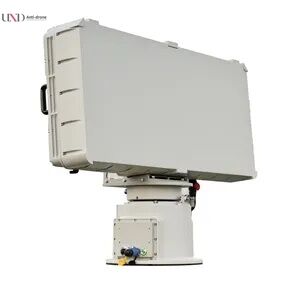

High-Speed Drone Detection Radar with 5km Range
Air Surveillance Radar U216-1SR-1S5K-3D / S Band
The U216-1S radar operates in S-band and utilizes advanced digital active phased array technology. Through modular, precision engineering and integrated application of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration design, this system delivers stable detection performance, high precision, and cost-effectiveness. It serves as an exceptional ground moving target detection radar, enabling key monitoring area surveillance, target identification, and positioning, while providing real-time, accurate, and continuous target information to monitoring systems.
Technical Highlights
- All-digital active phased array technology with DBF (digital beamforming)
- Digital T/R technology and highly integrated RF/digital design
- Adaptive moving target detection and Doppler clutter suppression
- Stabilized tracking technology for ground moving targets
Key Features
Advanced Technology
The U216-1S radar employs a phased array system with one-dimensional phase scanning, performing electrical scanning in azimuth for flexible, rapid beam pointing without inertia. It supports non-uniform detection with different scanning schemes for various regions to optimize overall detection performance. The software-based radar design using full digital phased array technology offers strong expandability and online upgrade capability.
Superior Ground Moving Target Detection
Equipped with Doppler filtering system and based on phased array architecture, the U216-1S completely eliminates clutter spectrum diffusion caused by antenna scanning modulation. It supports long-term online configuration with enhanced clutter suppression capability, making it ideal for detecting and tracking low-speed moving targets in strong clutter environments.
High Reliability
Without mechanical rotating components, the U216-1S radar eliminates failures due to mechanical and electrical issues, ensuring higher reliability. Unlike parabolic radars with single channels, this phased array radar operates with multiple parallel channels, maintaining normal operation even if some channels fail, thereby enhancing mission reliability.
Simple Installation & Operation
The modular design features simple structure and easy installation without rotating joints, adaptable to various installation conditions. The radar array interface is streamlined with only power and network connections required. Target position and feature information is output through user-friendly terminal software that is intuitive and easy to learn.
Technical Specifications
| Item |
Specification |
| Working System |
Phased Array System (Azimuth Phase Sweep) |
| Working Mode |
Pulse Doppler |
| Working Frequency |
S Band (5 Operating Frequency Points) |
| Maximum Detection Range |
4-6 km (Drones RCS≈0.01 m²) |
| Minimum Detection Range |
≤ 100m |
| Detection Range |
Azimuth Coverage: 360°
Elevation Coverage: 40° |
| Detection Speed |
0.5 m/s ~ 45 m/s |
| Measurement Accuracy |
Range Accuracy: ≤ 10m
Azimuth Accuracy: ≤ 1.0°
Speed Accuracy: ≤ 0.5 m/s - 45 m/s |
| Data Rate |
Searching: ≤ 2s |
| Data Interface |
RJ45, UDP |
| Power Supply |
AC 220V |
| Power Consumption |
≤ 200W |
| Working Environment |
Working Temperature: -40ºC ~ +55ºC
Storage Temperature: -45ºC ~ +65ºC
Waterproof Grade: IP66 minimum |
| Dimension |
782mm * 549mm * 198mm (Antenna) |
| Weight |
≤ 60kg (Including PTZ) |
Note: Detection range conditions apply for pedestrians or vehicles (ships) with radial velocity not less than 0.5 m/s, false alarm probability of 10⁻⁶, and detection probability of 0.8.
