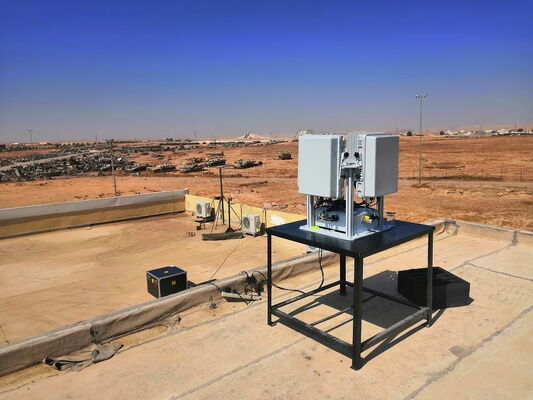

The U223-5C1K-3D is an advanced security surveillance radar system designed for detecting low-flying drones. This phased array radar features cutting-edge technology and delivers stable performance in various operational environments.

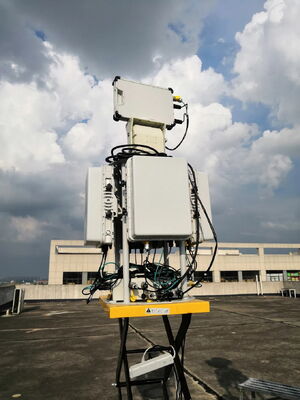

While similar to the U223-1C1K single-array radar, the U223-5C1K-3D incorporates a four-array configuration and includes an integrated height finding radar for comprehensive 3D detection capabilities.
Ideal for security surveillance at airports, military bases, border areas, and other critical infrastructure locations requiring advanced airspace monitoring.
| Item | Specification |
|---|---|
| Working mode | Phased array + Pulse Doppler |
| Working frequency | C band (5.5-5.8GHz) |
| Detection range | 1.2km (DJI Phantom 3/4, "Mavic", RCS≈0.01 square meter) |
| Minimum detection range | ≤100m |
| Azimuth coverage | 4-panel: 360°+ (Height Detection Radar 3D) |
| Elevation coverage | 40° |
| Distance accuracy | ≤10m |
| Azimuth Accuracy | ≤1.0° |
| Target detection speed | 0.2m/s - 25m/s |
| Speed precision | ≤0.2m/s |
| Data rate | ≤1.5s |
| Peak Output | 4W/Panel |
| Net weight | ≤70kg |
| Power supply | AC220V/250W |
| Interface | Ethernet (UDP protocol) |
| Dimension | 725mm * 725mm * 735mm (2D) 725mm * 725mm * 1400mm (3D) |
| Working temperature | -40°C to +60°C |
| Working Environment | Rain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof |
