UAV Detection Long Range Radar / Drone Air Surveillance Radar

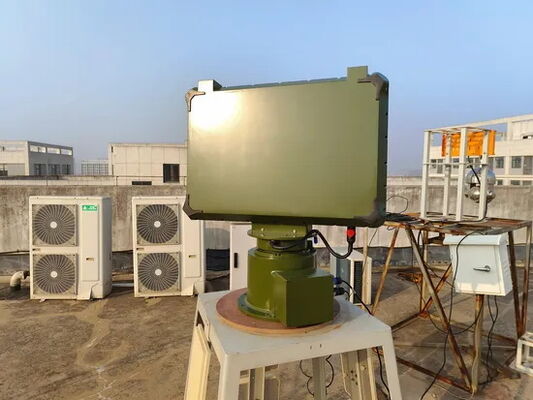

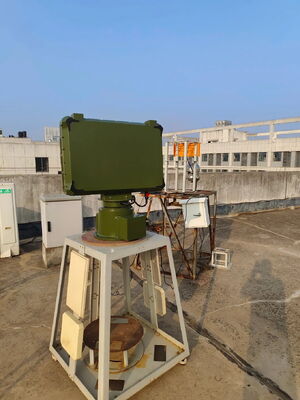

Air Surveillance Radar U216-1SR-1S5K-3D / S Band
The U216-1S radar operates in S-band and utilizes advanced digital active phased array system technology. Through modular, precision design and the integrated application of adaptive moving target detection, digital T/R (transmit/receive), DBF (digital beamforming), and analog-to-digital integration design, this radar delivers stable detection performance, high precision, and cost-effectiveness. It serves as an exceptional ground moving target detection radar capable of monitoring key surveillance areas, providing vigilance and position indication, and delivering real-time, accurate, and continuous target information to monitoring systems.
Technical Highlights
- All-digital active phased array technology system with receiving and transmitting DBF technology
- Digital T/R technology and highly integrated RF and digital integration design
- Adaptive moving target detection and Doppler clutter suppression
- Stabilization tracking technology for ground moving targets
Key Features
Advanced Technology
The U216-1S radar employs a phased array system with one-dimensional phase scanning, performing electrical scanning in azimuth for flexible and rapid beam pointing without inertia. It enables non-uniform detection with different detection schemes for various regions to enhance overall detection performance. The software radar design based on the full digital phased array system offers strong expandability and online upgrade capability.
Excellent Ground Moving Target Detection
With its Doppler filtering system designed on the phased array platform, the U216-1S completely eliminates clutter spectrum diffusion caused by radar antenna scanning modulation. It supports online configuration for extended periods and provides superior clutter suppression capability, making it ideal for detecting and tracking low-speed moving targets in strong clutter environments.
High Reliability
The U216-1S radar requires no mechanical rotating equipment, eliminating operational failures due to mechanical or electrical issues and ensuring higher reliability. Unlike parabolic radars with single channels, this phased array radar operates with multiple parallel channels, maintaining normal functionality even if some channels fail, thereby enhancing mission reliability.
Simple Installation & Operation
Featuring modular design and simple structure, the U216-1S radar is easy to install without rotating joints and adaptable to various installation conditions. The radar array interface is straightforward, requiring only a power interface and network interface for simple wiring. The radar outputs target position and feature information, which is displayed and operated through user-friendly terminal software that is simple to learn and use.
Technical Specifications
| Item |
Specification |
| Working System |
Phased array system (Azimuth phase sweep) |
| Working Mode |
Pulse Doppler |
| Working Frequency |
S band (5 operating frequency points) |
| Maximum Detection Range |
5-10 km (Drones RCS≈0.01 square meter) |
| Minimum Detection Range |
≤ 100m |
| Detection Range |
Azimuth coverage: 360°
Elevation coverage: 40° |
| Detection Speed |
0.5m/s ~ 45m/s |
| Accuracy of Measurement |
Range accuracy: ≤ 10m
Azimuth accuracy: ≤ 1.0°
Speed accuracy: ≤ 0.5m/s - 45m/s |
| Data Rate |
Searching: ≤ 2s |
| Data Interface |
RJ45, UDP |
| Power Supply |
AC 220V |
| Power Consumption |
≤ 200W |
| Working Environment |
Working temperature: -40ºC ~ +55ºC
Storage temperature: -45ºC ~ +65ºC
Waterproof grade: IP66 at minimum |
| Dimension |
782mm * 549mm * 198mm (Antenna) |
| Weight |
≤ 60kg (Including PTZ) |
Detection range condition: For pedestrians or vehicles (ships) with radial velocity not less than 0.5m/s, false alarm probability is 10⁻⁶, and detection probability is 0.8.
